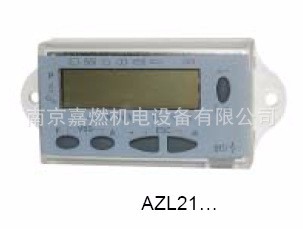

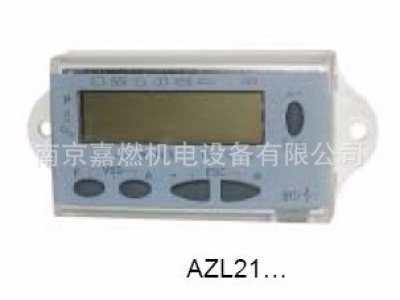

SIEMENS西門子燃?xì)馊紵刂破髟O(shè)置面板AZL21
- 產品型號： AZL21
- 產品描述： SIEMENS西門子燃?xì)馊紵刂破髟O(shè)置面板AZL21
- 咨詢電話： 025-83704820，83705420
全國服務熱線：
000-000-0000Technical data
Operating voltage DC 5 V
Power consumption<50 mW
(typically)
Degree of protection
- AZL21…
IP40 to IEC529
-
AZL23…
- Rear
- Front
IP40 to IEC529
IP54 to IEC529 when
mounted
Safety class II to DIN EN 60730-1
Housing
- Material
-
Color
PC and PC / ABS
RAL 7035 (light-grey)
Flame protection class
-
Transparent housing parts
- Colored housing parts
To UL94 V2 (PC)
To
UL94 V0 (PC / ABS)
Weight
- AZL21…
- AZL23…
Approx. 85 g
Approx.
120 g
Degree of contamination 2
Signal cable Color
white
Unshielded
Conductor 4 x 0.141 mm2
With connector RJ11
Cable
length
- AGV50.100
- AGV50.330
1 m
3 m
Supplier
Reference:
Hütter
http://www.huetter.co.at/telefonkabel.htm
Order
number: T11721004
Location Under the burner hood (arrangements for
SKII
EN60730-1 additional required)
For permissible length of cable, refer to the
Data Sheet of the relevant type of burner
control.
BCI interface with RJ11
female For Siemens burner controls
Storage DIN EN 60721-3-1
Climatic
conditions Class 1K3
Mechanical conditions Class 1M2
Temperature range
-20...+60 °C
Humidity<95 % r.h.
Transport DIN EN 60721-3-2
Climatic
conditions Class 2K3
Mechanical conditions Class 2M2
Temperature range
-30...+60 °C
Humidity<95 % r.h.
Operation DIN EN 60721-3-3
Climatic
conditions Class 3K3
Mechanical conditions Class 3M3
Temperature range
-20...+60 °C
Humidity<95 % r.h.
Condensation, formation of ice and
ingress of water are not permitted!
