000-000-0000LFL1...系列燃?xì)馊紵骺刂破?/strong>

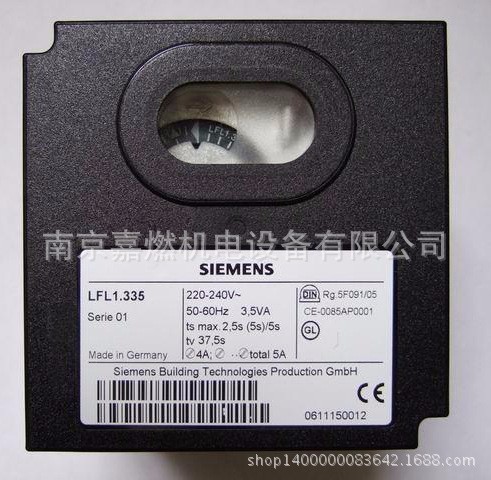

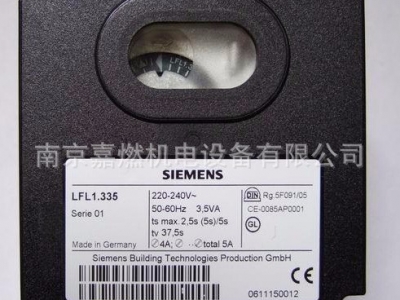

品牌：SIEMENS（西門子）
產地：德國
產品介紹
控制和監控間歇運轉的多段或連續比例調節的大中型燃?xì)猓加突螂p燃料強制通風式燃燒器
控制具有膨脹式火焰和可遮斷的點火燃燒器
帶有風門位置檢測
LFL1.638適用于大容量的自然通風式燃燒器
The burner controls of the LFL1... range are designed for the control and supervision of forced draught gas burners of both expanding flame and interrupted pilot construction of medium to high capacity. They are universally applicable and can be used for both multistage and modulating burners as well as for dual-fuel burners and for burners of stationary air heaters (WLE to DIN 4794).
The difference between series 01 and 02 lies in the duration of the safety time for the pilot burner of burners using pilot gas valves.
For atmospheric burners of high capacity, type LFL1.638 is available.
For burner controls used with burners in continuous operation, types LGK16... .
型號表
| LFL1.122 Series 02 | LFL1.133 Series 02 | LFL1.322 Series 02 | LFL1.333 Series 02 | LFL1.335 Series 01 | LFL1.622 Series 02 | LFL1.635 Series 01 | LFL1.638 Series 01 | |
| t1 | 10 | 9 | 36 | 31.5 | 37.5 | 66 | 67.5 | 67.5 |
| t2 | 2 | 3 | 2 | 3 | 2.5 | 2 | 2.5 | 2.5 |
| t2' | - | 3 | - | - | 5 | - | 5 | 5 |
| t3 | 4 | 3 | 4 | 6 | 5 | 4 | 5 | 5 |
| t3' | - | - | - | - | 2.5 | - | 2.5 | 2.5 |
| t4 | 6 | 6 | 10 | 12 | 12.5 | 10 | 12.5 | 12.5 |
| t4' | - | - | - | - | 15 | - | 15 | 15 |
| t5 | 4 | 3 | 10 | 12 | 12.5 | 10 | 12.5 | 12.5 |
| t6 | 10 | 14.5 | 12 | 18 | 15 | 12 | 15 | 15 |
| t7 | 2 | 3 | 2 | 3 | 2.5 | 2 | 2.5 | 2.5 |
| t8 | 30 | 29 | 60 | 72 | 78 | 96 | 105 | 105 |
| t9 | 2 | 3 | 2 | 3 | 5 | 2 | 5 | 7.5 |
| t10 | 6 | 6 | 8 | 12 | 10 | 8 | 10 | 10 |
| t11 | optional | optional | optional | optional | optional | optional | optional | optional |
| t12 | optional | optional | optional | optional | optional | optional | optional | optional |
| t16 | 4 | 3 | 4 | 6 | 5 | 4 | 5 | 5 |
| t13 | 10 | 14.5 | 12 | 18 | 15 | 12 | 15 | 15 |
| t20 | 32 | 60 | - | 27 | 22.5 | - | - | - |
| t1 | 預吹掃時間，風門打開 | t7 | 從開始到端口7開始工作的間隔時間（風機2開始延遲時間） |
| t2 | 安全時間 | t8 | 啟動持續時間（沒有端口11和12） |
| t2' | 安全時間或1段火安全時間 | t9 | 第二安全時間 |
| t3 | 預點火時間，短（點火變壓器連接端口16） | t10 | 從啟動到空氣壓力監測開始的間隔時間（不包括風門運行時間） |
| t3' | 預點火時間，長（點火變壓器連接端口15） | t11 | 風門打開到最大位的運行時間 |
| t4 | 從t2開始到端口19打開2段火的間隔時間 | t12 | 風門運行到小火位的時間 |
| t4' | 從t2'開始到端口19打開2段火的間隔時間 | t13 | 允許的燃燒后時間 |
| t5 | 從t4結束到端口20打開比例控制或閥門的間隔時間 | t16 | 直到風門給出打開命令的間隔時間 |
| t6 | 后吹掃時間（帶風機2） | t20 | 程控器鎖定后的順序自檢時間 |
技術參數
| 主電壓 | AC220V
-15%...240V +10% AC100V -15%...110V +10% |
| 主頻率 | 50...60Hz ±6% |
| 內部保險絲 | T6，3H 250V to IEC 127 |
| 外部保險絲 | 16A |
| 功率 | 3VA |
| 重量 | 1000g(底座165g) |
| 保護等級 | IP40 |
| 額定電流 端子15A(可短時間20A)端子3，6，7，9...11，15...204A(可短時間20A)端子4，5之間開關1A端子4，12之間開關1A端子4，14之間開關5A(可短時間20A) | |
環境條件
| 運輸環境 | IEC 721-3-2 |
| 內部條件 | class 2K2 |
| 溫度范圍 | -50...+70oC |
| 濕度 | <95% |
| 運行環境 | IEC 721-3-3 |
| 內部條件 | class 3K5 |
| 溫度范圍 | -20...+60oC |
| 濕度 | <95% |
| 不得進水 | |
